Antero Mapping

Antero's Mapping section allows users to easily view equipment's' locations on a predefined map area.

Antero's Mapping section allows users to easily view equipment's' locations on a predefined map area.  Users can view markers for any and all equipment that have been mapped in the Equipment section.  The markers can be clicked to open a Selection Details window showing more information about the equipment.  Users can easily set a default map location for a satellite image or road map zoomed in on the selected town, city, plant, or general area.



Mapping Tools

Mapping has a vertical row of tools available in the upper right hand corner for every display of that map.  Here are the following tools and what each ones does:

Searching Equipment

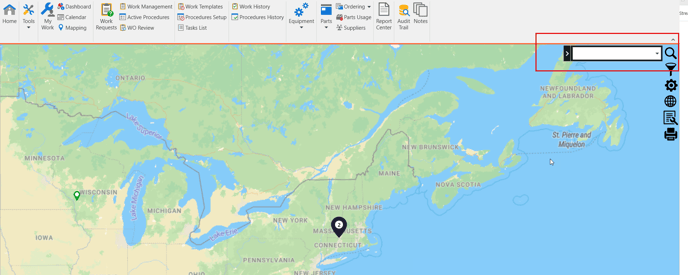

Use the search box to search for equipment on the map.  Equipment must be mapped in the Equipment section to show up in this list.  Refer to the Mapping Equipment help topic to learn more about the steps to add equipment to the map.  Enter the Equipment name in the search field or select equipment from the drop-down.

Filters

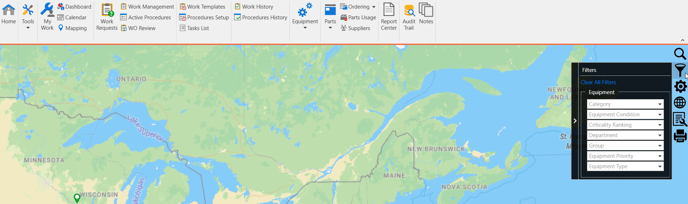

The filter icon will produce a window that allows for the Equipment data to be filtered.  The filter data available in the drop-down, will be based on all of the mapped equipment.  Click on a drop-down, put a check mark next to data that is to be filtered.

Once data has been filtered, the drop-down list will display the number of items selected.  The filter icon on the map will also add a green check-mark notifying the user that data has been filtered.

Map Settings

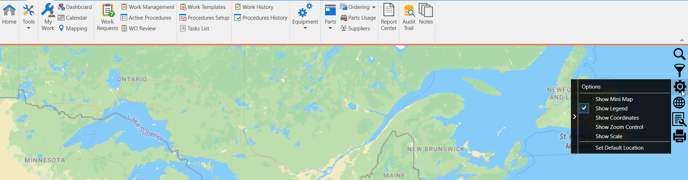

Mapping has a set of options that can be turned on and off by checking and un-checking the options in the list.

Set Default Location:  Adjust the map to a specific location and zoom level, click the Set Default Location and the Mapping section will always open up to this location.

Toggle Map Display

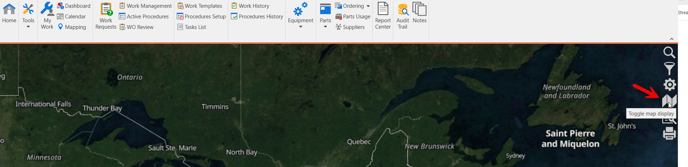

Clicking the toggle will change between a map view and a satellite view.

All Equipment/Equipment with Work Toggle

Toggles between a view that displays Equipment with work or all equipment mapped.  Refer to Equipment with Work topic to learn more about what is presented in each view.

Print Map Display

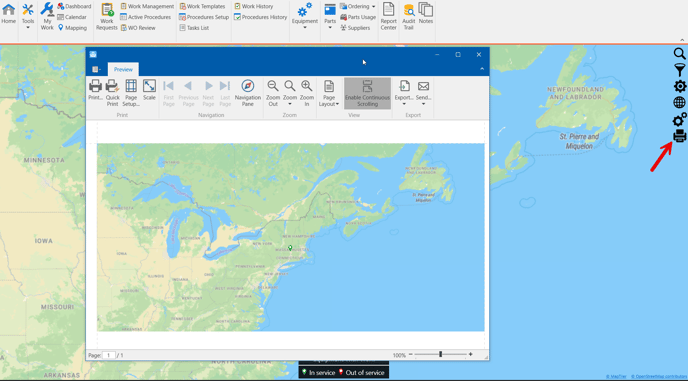

When the Print Current Map Display button is clicked, the program will open a Print Preview button.  The current map can be printed from the options in the Print Preview window.

Working with Equipment Interface

Equipment Pin's

Equipment in mapping will be pin pointed with three different times of pins.  The pins will turn blue when a user clicks and selects one.

•Green - A single piece of Equipment that is in service.

•Red  - A single piece of Equipment that is out of service.

•Black  - When multiple pieces of equipment are close enough together that the pins can't be separated, a black pin with the number of Equipment will be displayed.  Example:  Two equipment side-by-side would have a number 2 inside of the pin.

Selection Details

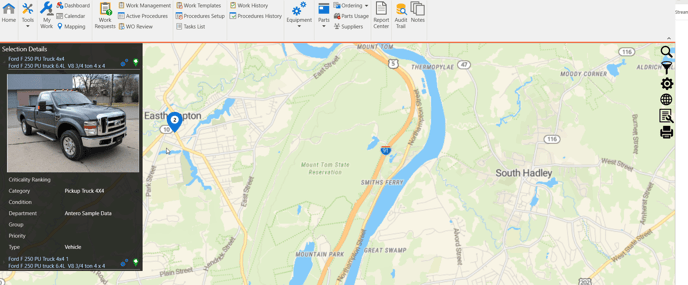

When a user selects a mapping pin, a Selection Details window will come up and display information about the selected Equipment.  Refer to the image below to see the available fields in the Select Details window.

•Single Equipment:  Selecting a single equipment will bring up the Selection details window with the equipment details expanded

•Multiple Equipment:  Selecting a pin that has multiple equipment will produce the Selection Details window with the Equipment listed (Name and Description).  Click on a single equipment to expand the details in the window.

•Equipment Icon:  Blue gears icon will open the selected equipment in the Equipment Section.

•Green/Red Pin:  Click the green pin to zoom directly into the selected equipment on the map.
